Mobile Vac

Outline

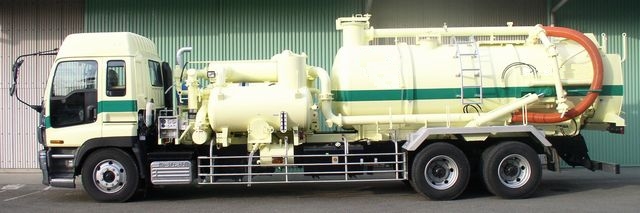

A high-performance suction truck that applies powerful suction to powders or liquids at deep or distant locations.

Features

  1. It is equipped with a large-capacity, high-vacuum roots type blower.
  2. Highly energy-efficient with a robust design, it is durable and economical.
  3. Customers may select from a variety of sizes, ranging from GVW 8 ton up to 25 ton, in order to suit every application.

Applications

It can be used for cleaning sewage pipes, ditches, and catch-pits, for high-lift and long-distance suction work (powder and granular material, sewage sludge and so forth), for dredge work, and for other various purposes.

Mobile Vac Specification

Model Classification Suction rate Vacuum pressure Power requirement
Mobile Vac 10 10 m3/min -96kPa
(-720mmHg)
17kW
(23PS)
Mobile Vac 20 18 m3/min -69kPa
(-520mmHg)
29kW
(40PS)
20 m3/min -96kPa
(-720mmHg)
32kW
(44PS)
Mobile Vac 40 40 m3/min -96kPa
(-720mmHg)
58kW
(78PS)
Mobile Vac 50 50 m3/min -96kPa
(-720mmHg)
87kW
(118PS)
Mobile Vac 60 60 m3/min -93kPa
(-700mmHg)
93kW
(126PS)
Mobile Vac 70 70 m3/min -96kPa
(-720mmHg)
104kW
(142PS)
Mobile Vac 80 80 m3/min -93kPa
(-700mmHg)
118kW
(160PS)
Mobile Vac 100 100 m3/min -87kPa
(-650mmHg)
141kW
(192PS)
Mobile Vac 120 120 m3/min -93kPa
(-700mmHg)
182kW
(248PS)
Mobile Vac AD
Independent Engine
47.5 m3/min -64kPa
(-480mmHg)
64kW
(88PS)
120 m3/min -93kPa
(-700mmHg)
213kW
(290PS)
150 m3/min -87kPa
(-650mmHg)
235kW
(320PS)
200 m3/min -67kPa
(-500mmHg)

System Flow

Powder Suction and Pressure Delivery Trucks

Suction and recovery of powders in plants with heavy dust levels. This special-purpose suction and recovery truck is used for fine dust at locations with high levels of fine dust. Typical uses would be at steel, cement and automobile plants for accumulated dust in buildings and for fallen ores.
